| 規格 |
HIW-400 |

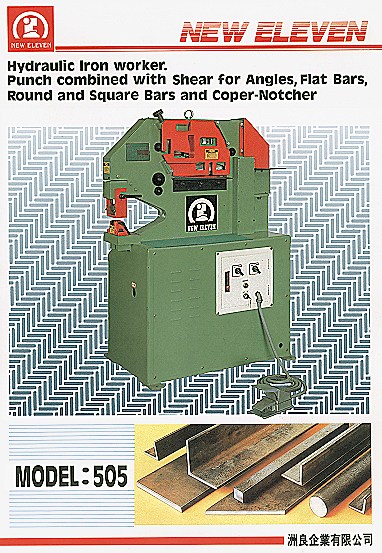

505 |
805 |
| 剪板 |
3/8" x 14" (10 x 355 mm) |
1/2" x 14" (12 x 355 mm) |
1/2" x 19-3/4" (12 x 500 mm) |
| 剪板 |
1/2" x 10" (12 x 254 mm) |
5/8" x 12" (16 x 305 mm) |
3/4" x 12" (19 x 305 mm) |
| 剪角鐵（90°） |
3" x 3" x 5/46" (75 x 75 x 8 mm) |
4" x 4" x 1/2" (100 x 100 x 12.7 mm) |
6" x 6" x 1/2" (150 x 150 x 12 mm) |
| 剪角鐵（45°） |
2" x 2" x 5/16" (50 x 50 x 8 mm) |
2-1/2" x 2-1/2" x 3/8" (64 x 64 x 9 mm) |
3-5/8" x 3-5/8" x 1/2" (92 x 92 x 12 mm) |
| 剪槽鐵（非標準附件） |
3" (75 mm) |
4" (100 mm) |
5" (125 mm) |
| 剪棒材（圓棒） |
－ |
1-1/4" (32 mm) |
2" (50 mm) |
| 剪棒材（方棒） |
－ |
1-1/4" (32 mm) |
1-3/4" (45mm) |
| 剪方口形 |
－ |
3/8" (10 mm) |
1/2" (12 mm) |
| 剪口寬度 |
－ |
2" (50mm) |
2-3/4" (70 mm) |
| 剪口深度 |
－ |
3-1/2" (90 mm) |
4" (100 mm) |
| 剪三角形 |
－ |
3/8" (10 mm) |
1/2" (12 mm) |
| 剪口深度（非標準附件） |
－ |
3" x 3" (75 x 75 mm) |
4" x 4" (100 x 100 mm) |
| 沖孔（壓力） |
40 Tons |
55 Tons |
85 Tons |
| 孔徑 |
7/8" (22 mm) |
1-1/4" (32 mm) |
1-1/4" (32 mm) |
| 板厚 |
1/2" (12 mm) |
19/32" (15 mm) |
13/16" (20 mm) |
| 行程12mm每分鐘沖程數 |
35 |
32 |
30 |
| 全行程每分鐘沖程數 |
14 |
7 |
5 |
| 喉深 |
6" (150 mm) |
10-5/8" (270 mm) |
20" (508 mm) |
| 馬達 |
3 HP (60 Hz) |
5 HP (60 Hz) |
10 HP (60 Hz) |
| 機器尺寸（L x W x H） |
50" x 26" x 53" (1,270 x 660 x 1,346 mm) |
41" x 26" x 59" (1,042 x 660 x 1,498 mm) |
76-1/4" x 40-1/2" x 74-3/4" (1,936 x 1,030 x 1,895 mm) |
| 淨重（約） |
1,130 lbs (515 kgs) |
2,112 lbs (960 kgs) |
4,454 lbs (2,025 kgs) |
| 毛重（約） |
1,364 lbs (620 kgs) |
2,310 lbs (1,050 kgs) |
5,126 lbs (2,330 kgs) |
| 裝箱尺寸（L x W x H） |
51" x 30" x 63" (1,300 x 762 x 1,600 mm) |
42" x 30" x 61" (1,066 x 762 x 1,550 mm) |
79" x 43-5/16" x 80-1/2" (2,006 x 1,100 x 2,045 mm) |
