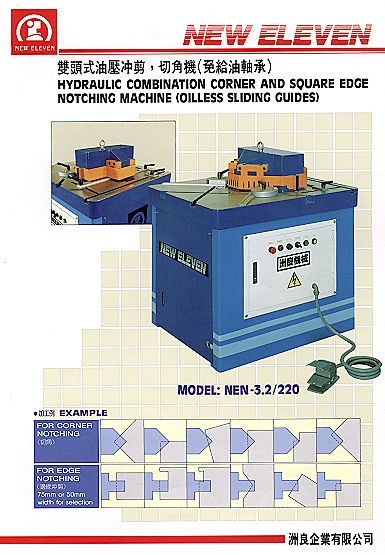

| 型號 |
NEN-3.2/220 |
NEN-5/220 |
NEN-3.2/250 |
NEN-6/250 |
| 剪切厚度 |
3.2 mm |
5 mm |
3.2 mm |
6.4 mm |
| 剪角尺寸 |
220 x 220 mm |
220 x 220 mm |
250 x 250 mm |
250 x 250 mm |
| 油壓缸壓力 |
10 Ton |
15 Ton |
10 Ton |
25 Ton |
| 馬達 |
3 HP (60 Hz) |
3 HP (60 Hz) |
3 HP (60 Hz) |
5 HP (60 Hz) |
| 裝箱尺寸 |
1,120 x 950 x 1,170 mm (44" x 37 1/2" x 46") |
1,120 x 950 x 1,170 mm (44" x 37 1/2" x 46") |
1,280 x 1,120 x 1,210 mm (50" x 44" x 47 3/4") |
1,280 x 1,120 x 1,210 mm (50" x 44" x 47 3/4") |
| 淨重（約） |
820 kgs (1,804 lbs) |
1,100 kgs (2,420 lbs) |
1,200 kgs (2,640 lbs) |
1,400 kgs (3,080 lbs) |
| 毛重（約） |
880 kgs (1,936 lbs) |
1,160 kgs (2,552 lbs) |
1,280 kgs (2,816 lbs) |
1,480 kgs (2,939 lbs) |
| 機器尺寸 |
1,000 x 845 x 1,040 mm (39" x 33" x 41") |
1,000 x 845 x 1,040 mm (39" x 33" x 41") |
1,245 x 1,110 x 1,090 mm (49" x 44" x 43") |
1,245 x 1,110 x 1,090 mm (49" x 44" x 43") |
| 檯面尺寸 |
1,000 x 845 mm (39" x 33") |
1,000 x 845 mm (39" x 33") |
1,245 x 1,110 mm (49" x 44") |
1,245 x 1,110 mm (49" x 44") |
